Versatronik® Solar
531 - Solar/LON Gateway
532 - Solar/Modbus Gateway
535 - Solar/BACnet-IP Gateway

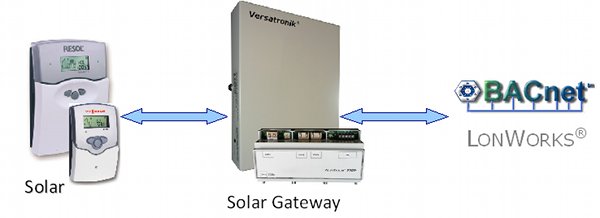

When your building management system needs to communicate with Resol- or Viessmann line of solar controls, the Versatronik® 53X Solar gateway is your best choice.
This gateway communicates with Resol's VBus protocol and receives all availbale data-points. These are then converted to either LonWorks or BACnet/IP depending on your needs.

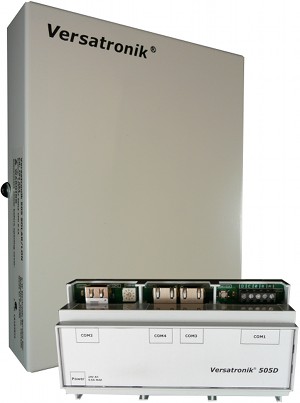

You can now choose between a wall-mounted 120VAC, or a DIN-rail mounted 24AC unit.
LONWORKS®
The LONWORKS protocol is a global standard for building controls. If your Building Managements System (BMS) uses LONWORKS, our Gateway can be used to interface to your Solar control.
See the Overview below to see which Datapoints will be made accessible through your BMS.
BACnet/IP
BACnet is a communications protocol, developed by ASHRAE, specifically for the use of automation and control of HVAC systems.
Our Gateway uses the BACnet/IP (Ethernet interface) protocol to integrate your Solar Control with your Building Management System.
Ordering information
Versatronik 531 LONWorks - P/N 704064
Metal enclosure, 120V power supply
Versatronik 531D LONWorks - P/N 704067
Plastic DIN-rail enclosure, 24VAC power supply
Versatronik 532 Modbus - P/N 704089
Metal enclosure, 120V power supply
Versatronik 532D LONWorks - P/N 704090
Plastic DIN-rail enclosure, 24VAC power supply
Versatronik 535 BACnet/IP - P/N 704065
Metal enclosure, 120V power supply
Versatronik 535D BACnet/IP - P/N 704066
Plastic DIN-rail enclosure, 24VAC power supply
Versatronik Price Lists
Please e-mail (sales@kwe-tech.com,) or call us at (519) 747-5042 for pricing.
Canadian Price List (July 2011)
U.S.A. Price List (July 2011)
Overview Specifications Documentation
Currently supported devices
Others may be easily added, please contact us
- Resol Deltasol M
- Resol BS Plus
- Viessmann Vitosolic 200
- Viessmann SCU124
- Viessmann SCU224
Datapoints:
Readable (Availability depends on solar control)
- Temperature Sensors 1-12
- Irradiation
- Pulse Counters 1 and 2
- Sensor Error (opens and shorts)
- Sensor Mask (required sensors)
- Relay Status 1-12
- Error and Warning codes
- Options enabled on control
- Heat quantity total
- Pump operating hours
Writable
- °C or °F Selectable
