Versatronik® NR2 Gateway

501 - NR2/LON Gateway

502 - NR2/Modbus Gateway

505 - NR2/BACnet-IP Gateway

The Versatronik 50X NR2 gateway provides a communication translation between Viessmann Vitotronic NR2 Commercial boiler controls and BACnet (505), Modbus (502), or LonWorks(501) enabled BMS systems.

This gateway can monitor and control up to four boilers, one cascade, and 3 zone controls.

The Versatronik gateway may either be part of a control panel or it can be a stand-alone device.

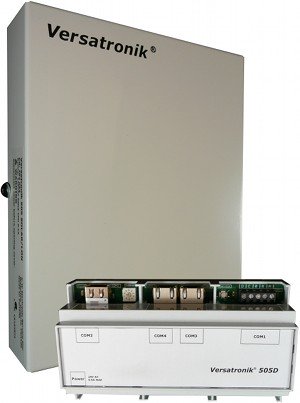

50X / 50XD (DIN Rail) Our communication gateways come in two type of enclosures: the 50X gateway is a 120VAC metal enclosure unit, and the 50XD is a 24VAC DIN-Rail mountable plastic enclosure unit (See picture.)

LONWORKS®

The LONWORKS NR2 protocol is a global standard for building controls. If your Building Managements System (BMS) uses LONWORKS, our Gateway can be used to interface to your NR2 Boiler control.

Modbus

Integrate your RS485 Modbus network with Viessmann's NR2 LON boilers.

See the Overview below to see which Datapoints will be made accessible through your BMS.

BACnet/IP

Our Gateway uses the BACnet/IP (Ethernet interface), NR2 prtocol to intergrate a Viessmann NR2 Control with your Building Management System.

Type-B

The NR2 gateways marked as "Type-B" has a different set of point allowing it to control up to 16 Viessmann NR2 boilers directly without the need for a cascade control. Your BMS will handle staging and rotation of the boilers.


Ordering information

Versatronik 501 NR2,LONWorks - P/N 704049

Metal enclosure, 120V power supply

Versatronik 501D NR2,LONWorks - P/N 704068

Plastic DIN-rail enclosure, 24VAC power supply

Versatronik 502 NR2,Modbus - P/N 704087

Metal enclosure, 120V power supply

Versatronik 502D NR2,Modbus - P/N 704088

Plastic DIN-rail enclosure, 24VAC power supply

Versatronik 505 NR2,BACnet/IP - P/N 704050

Metal enclosure, 120V power supply

Versatronik 505D NR2,BACnet/IP - P/N 704069

Plastic DIN-rail enclosure, 24VAC power supply

Versatronik Price Lists

Please e-mail (sales@kwe-tech.com,) or call us at (519) 747-5042 for pricing.

Canadian Price List (July 2011)
U.S.A. Price List (July 2011)

Ordering information - Type-B

Versatronik 511 NR2,LONWorks Type-B - P/N 704076

Type-B, Metal enclosure, 120V power supply

Versatronik 511D NR2,LONWorks Type-B - P/N 704078

Type-B, Plastic DIN-rail enclosure, 24VAC power supply

For your convenience, we now accept Interac, Visa and MasterCard in-house.

Please email (sales@kwe-tech.com,)
or call us at (519) 747-5042 for pricing

Versatronik 515 NR2,BACnet/IP Type-B - P/N 704079

Metal enclosure, 120V power supply

Versatronik 515D NR2,BACnet/IP Type-B - P/N 704080

Plastic DIN-rail enclosure, 24VAC power supply

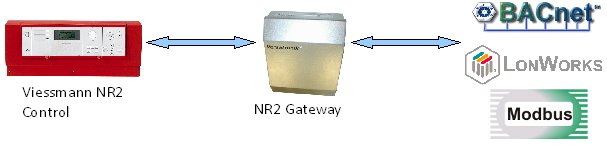

Gateway Diagram

Overview Specifications Documentation

Datapoints

Readable

  • Boilers 1-4 Actual Temperature
  • Boilers 1-4 Actual Return Temperature Sensors 1 and 2
  • Boilers 1-4 Actual Flue-gas Temperature
  • Boilers 1-4 Fault Code
  • Boilers 1-4 Relay State
  • Zone/Cascade/Boiler Outdoor Temperature
  • Zone/Cascade/Boiler Relay State
  • Zone/Cascade/Boiler Fault Code
  • Zone/Cascade/Boiler DHW Actual Temperature
  • Zone/Cascade/Boiler Zones A1 + M2 + M3 Supply Actual Temperature
  • Zone/Cascade/Boiler Zone A1 Actual Return Temperature



Readable / Writable

  • Boilers 1-4 + Zone/Cascade/Boiler LON Addresses
  • Zone/Cascade/Boiler DHW Setpoint
  • Zone/Cascade/Boiler Zones A1 + M2 + M3 Supply Setpoint
  • Zone/Cascade/Boiler Zones A1 + M2 + M3 Curve Shift
  • Zone/Cascade/Boiler Zones A1 + M2 + M3 Curve Slope
  • Zone/Cascade/Boiler Zones A1 + M2 + M3 Curve Room Temp. Normal
  • Zone/Cascade/Boiler Zones A1 + M2 + M3 Curve Room Temp. Reduced
  • °C or °F Selectable
