Bluelyzer ST

Bluelyzer ST    NEW!

Many modern central heating systems are adjusted to CO2 (carbon dioxide) for optimal performance and safety. In order to do this, measuring the composition of the flue gas is essential. Besides carbon dioxide, the concentration of carbon monoxide and the resulting toxicity index are of great importance for safety and for environment considerations.

The BlueLine® BLUELYZER ST offers an accurate flue gas analysis for managing and maintaining central heating systems in an unrivalled compact form.

Download Brochure (PDF)


  • Starter Set - O2, CO
    • $1,499 CAD (Approx $1,199 USD)
  • Pro Set - O2, CO, P
    • $2,999 CAD (Approx 2,299 USD)

All kits include:

  • Bluelyzer ST flue gas analyzer
  • Rugged, hard shell case
  • Flue gas probe system with:
    • Base handle
    • 12" Interchangeable probe
    • 5 x Infiltec fine filters
    • 5x Teflon fiber membranes
  • Ambient air temperature sensor
  • Data cable 1m
  • Power Supply
  • Spare Parts Set


Safety and security are important aspects in all BlueLine® measuring instruments. For your safety, and the safety of the occupants/users of the building where the central heating system is located, the BLUELYZER ST offers a special function for measuring the concentration of carbon monoxide in the surrounding air. This will enable you to recognize a malfunction in the central heating system and make repairs in time.

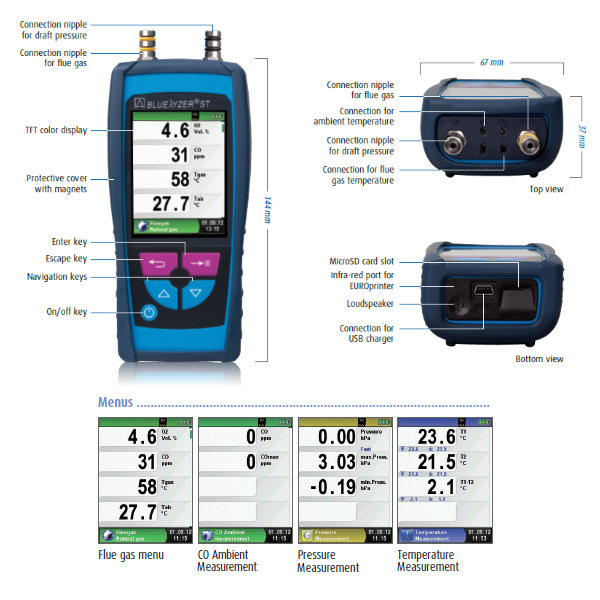

The appliance only has 5 controls, a clear English menu structure and a large TFT colour display. The built-in rechargeable battery makes using normal batteries superfluous. You can read the measurements from the display, store it on an optional MicroSD card or print it with the optional EUROprinter.

For pricing or to order call us at (519) 747-5042 or email

Overview Specifications Documentation


  • The most advanced and compact measuring instrument on the market
  • Smart Bluetooth┬« connectivity built-in for easy data transfer to PCs, mobile devices and printers
  • MicroSD card for system-independent measurement log storage and fast user updates
  • Measurement logs as QR codes for smart phones, tablets and management software.
  • Powerful, lead-free O2 sensor delivers rapid response times while maintaining a long service life
  • Analyses liquid and gaseous fuels, measuring O2, CO2, pressure and temperature
  • H2-compensated CO cell has an extended range up to 10,000 ppm
  • Intuitive, touch pad operation with large True Colour TFT screen
  • Fully automatic device and sensor check during program start
  • Made for multitasking, users can measure, navigate, charge and evaluate measurement results at the same time
  • Lightweight device with ergonomic design and robust protective sleeve and integrated magnets
  • Powerful lithium-ion battery for up to 12 hours of operation

Image Gallery

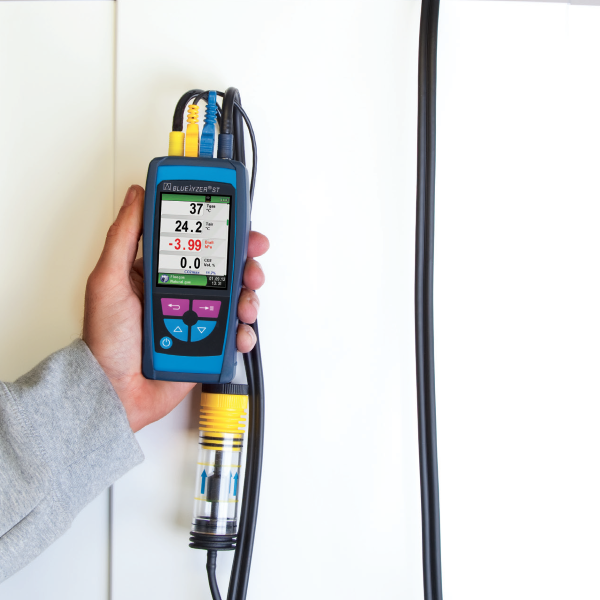

Compact and powerful

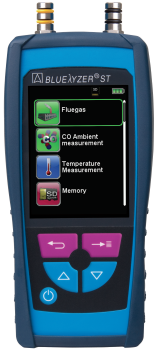

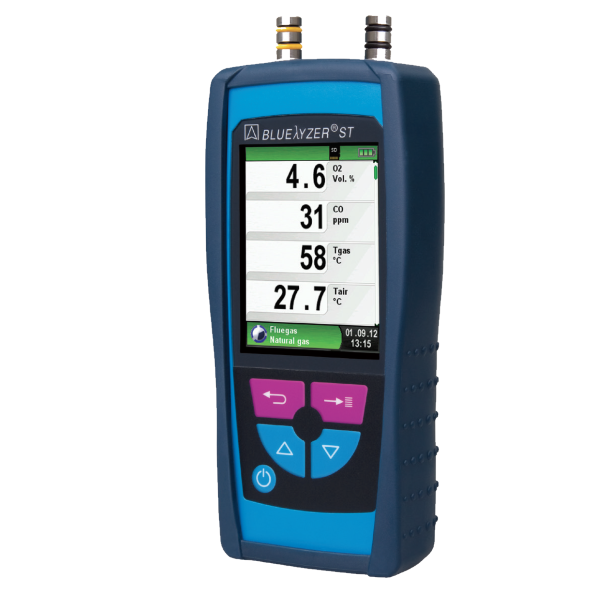

Easy to use interface.

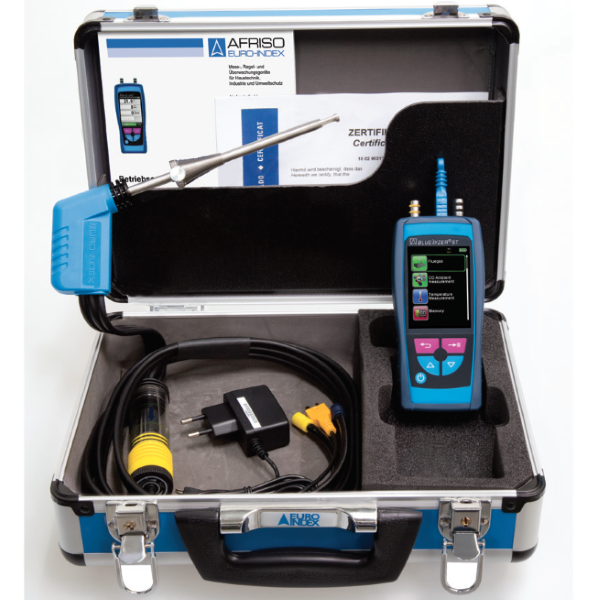

Rugged carrying case for the Bluelyzer and accesories.
